Engine Management vs Carburettor & Electronic Ignition



Mechanical Logic vs Programmed Control for Petrol ICE (Internal Combustion Engine)

 For decades, engines were controlled using carburettors and mechanically advanced ignition systems. These systems powered everything from basic commuters to high-end performance and race cars, and when correctly set up, they worked remarkably well.

Modern engines, by contrast, rely on electronic engine management, whether OEM or aftermarket systems such as Link, Haltech, Motec or Emtron.

Both approaches achieve the same goal — delivering fuel and ignition timing — but they do so using very different control philosophies.

This article compares the technology, operation, and drivability of:

• Carburettor + electronic/mechanical ignition
• Full electronic engine management (OEM and aftermarket)

 Carburettor & Electronic Ignition: How It Works

A traditional setup separates fuel and ignition control into two largely independent systems, each using mechanical or vacuum-based logic.

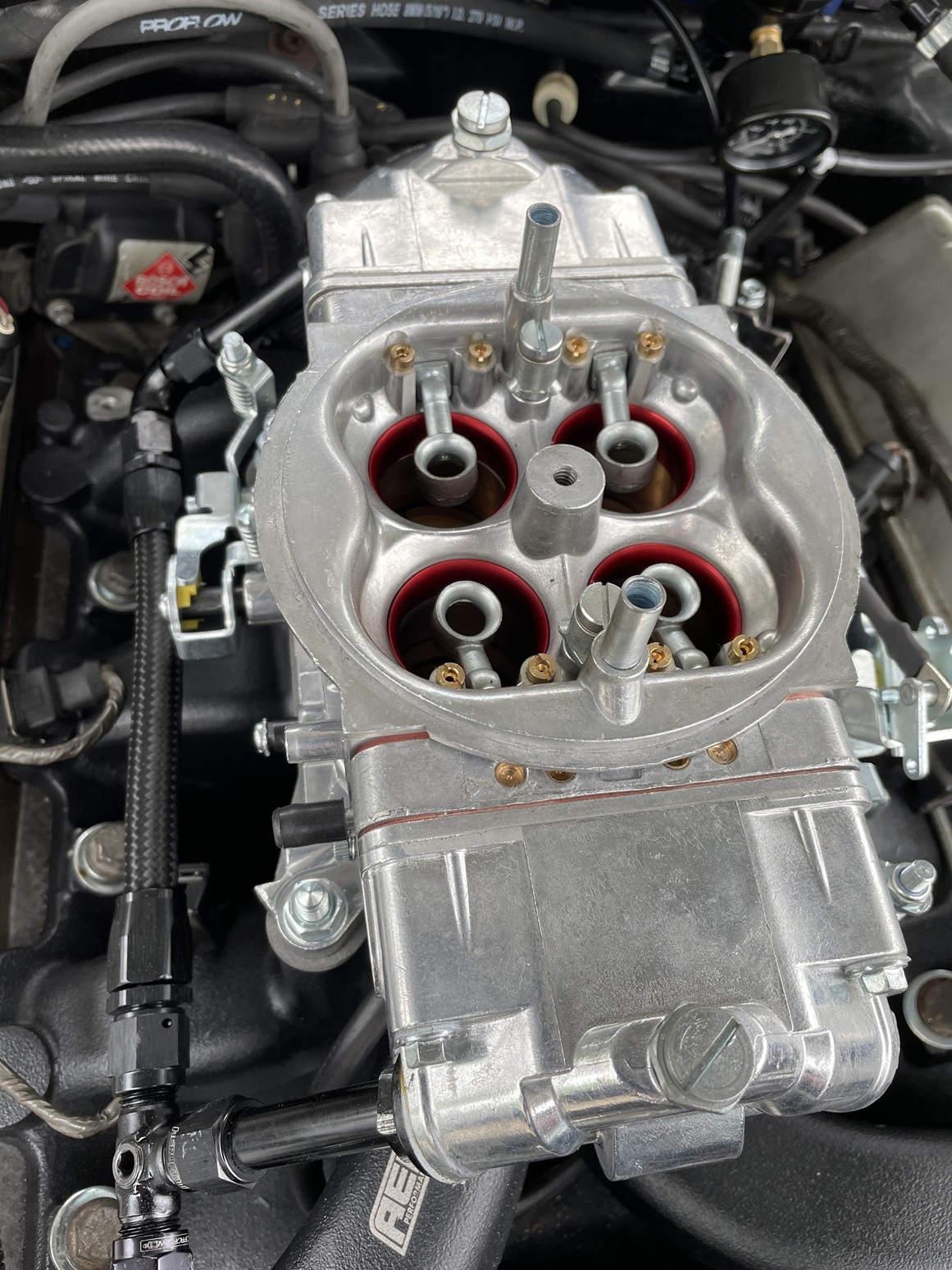

Fuel Control – Carburettor

A carburettor meters fuel based on airflow and pressure differential. It does not measure engine load, temperature, or mixture directly, and it has no feedback mechanism.

To cover the engine’s operating range, a carburettor uses multiple fixed fuel circuits, each responsible for a specific condition:

Operating Condition	Carburettor Circuit
Idle	Idle jet & mixture screw
Light throttle	Progression ports
Cruise	Main jet
High load	Power valve / enrichment
Sudden throttle	Accelerator pump
Cold start	Choke system



Each circuit overlaps the next, and tuning involves balancing these overlaps so that transitions are acceptable across as many conditions as possible.

Once set, these circuits do not change unless physically modified or adjusted.





Ignition Control – Mechanical & Vacuum Advance

Early electronic ignition systems typically retained mechanical timing control inside the distributor.

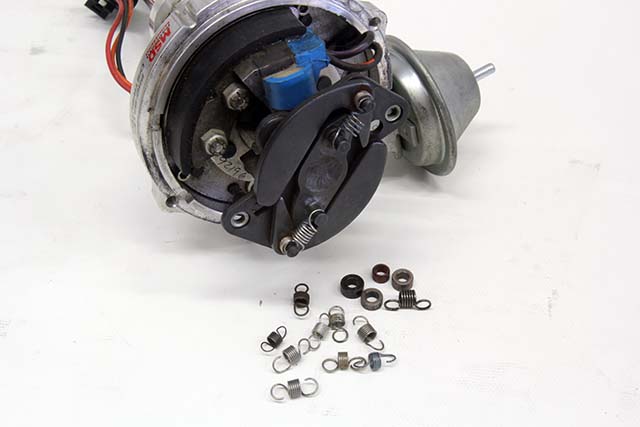

Mechanical Advance

• Weights and springs advance timing with RPM
• Curve is fixed by hardware
• Once set, it does not adapt

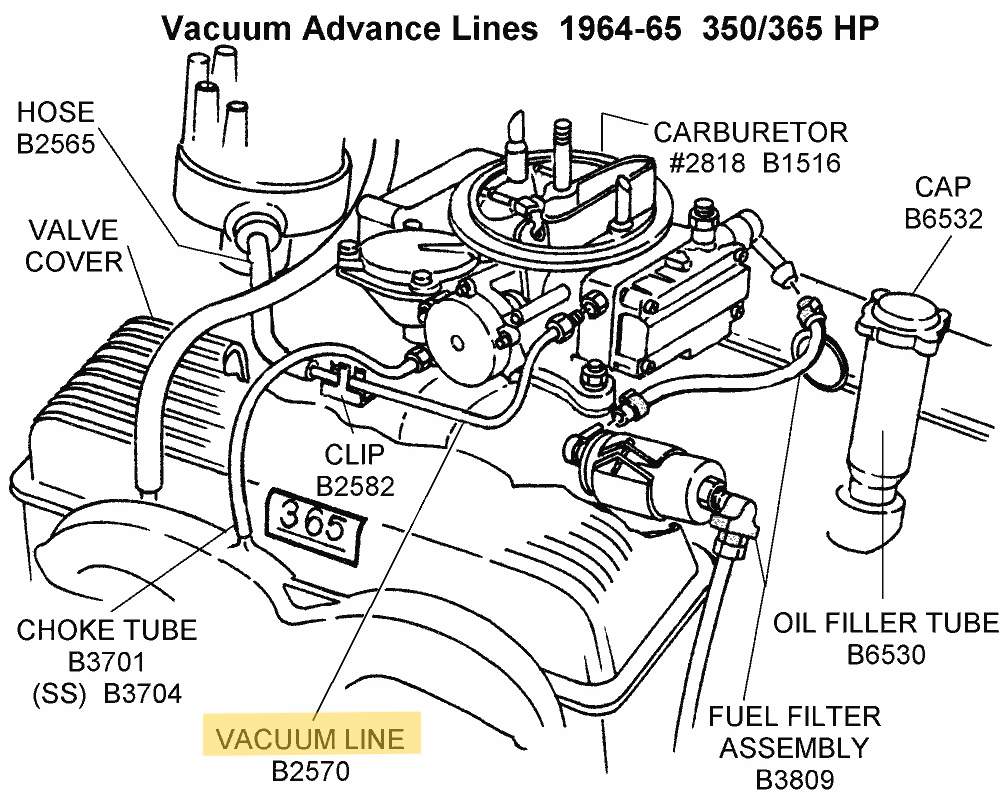

Vacuum Advance

• Adds timing under light load (high manifold vacuum)
• Improves fuel economy and cruise stability
• Drops out under load

Emissions-Era Add-Ons

To meet emissions requirements, manufacturers added layers of vacuum logic:

• Wax pellet thermo valves
• Vacuum switching valves
• Coolant-temperature-based vacuum routing
• Cold-start advance inhibition

These systems were attempts to vary ignition behaviour based on operating conditions — without sensors or computation.



Drivability Characteristics – Carb & Distributor

When correctly set up and operating within a narrow range:

• Smooth and predictable
• Good throttle response
• Acceptable economy

Outside that range:

• Cold starts can be inconsistent
• Tip-in hesitation or flat spots are common
• Hot restarts can be difficult
• Performance changes with weather and altitude

The system does not adapt — it simply operates according to its mechanical settings.

---

  “ECU Magic (But Actually Maths)”

Modern engine management integrates fuel and ignition control into a single programmed system.

An ECU does not “think” or “decide” — it:

1. Reads sensor inputs
2. Applies programmed tables, corrections, and logic
3. Outputs fuel and ignition commands accordingly

The quality of operation depends entirely on calibration quality and sensor accuracy.

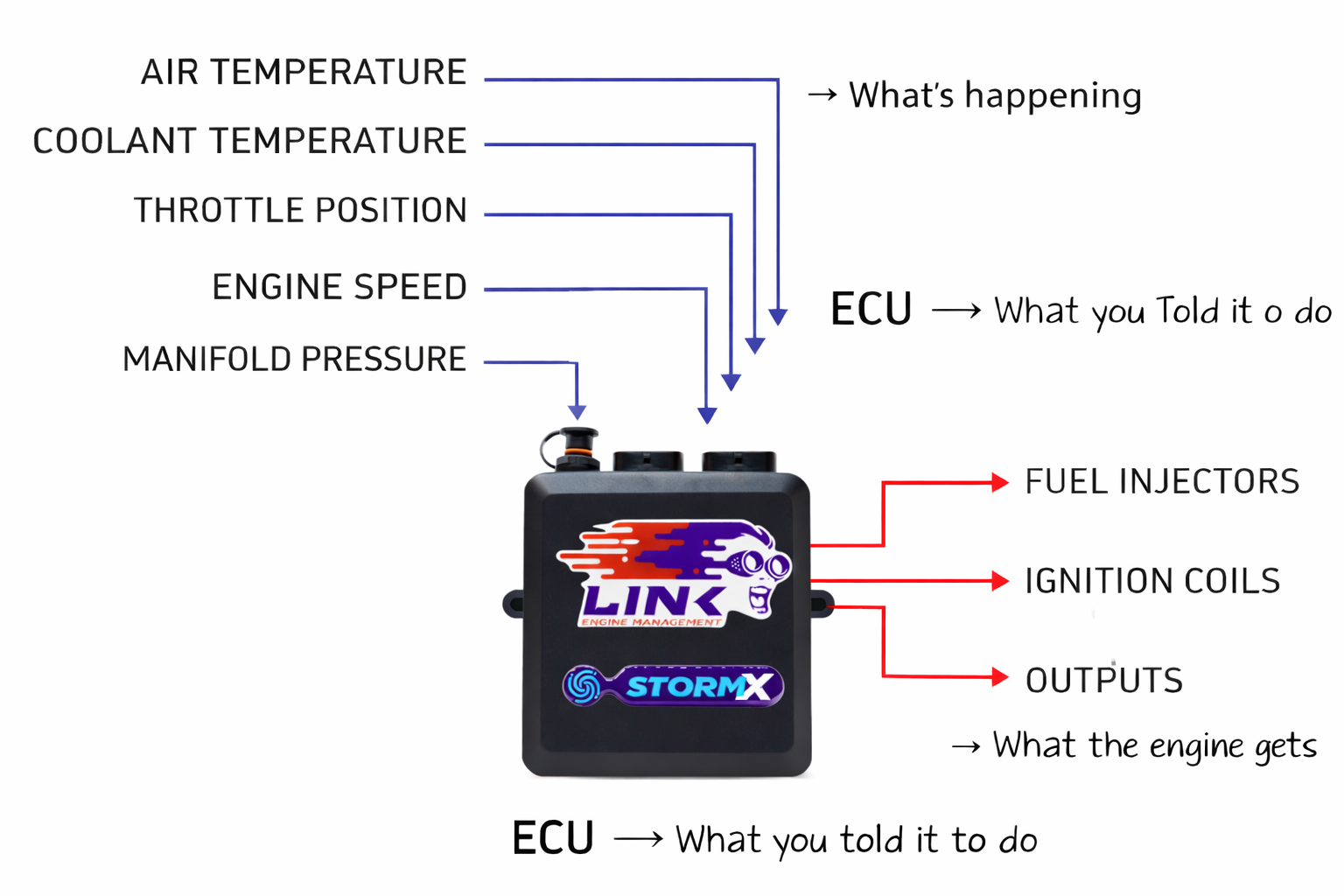

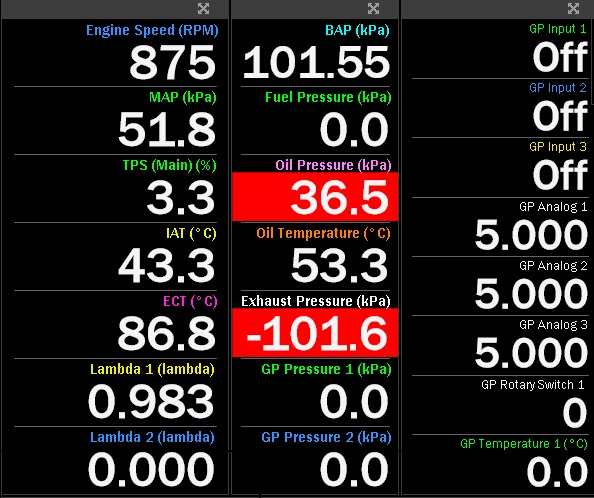

 Sensor Inputs: Replacing Mechanical Assumptions

Typical ECU inputs include:

• Engine speed and position
• Throttle position
• Manifold pressure
• Intake air temperature
• Coolant temperature
• Oxygen sensor feedback
• Battery voltage
• Barometric pressure
• Vehicle speed

These inputs allow the ECU to reference predefined maps and strategies rather than relying on airflow physics alone.



 Fuel Control Comparison

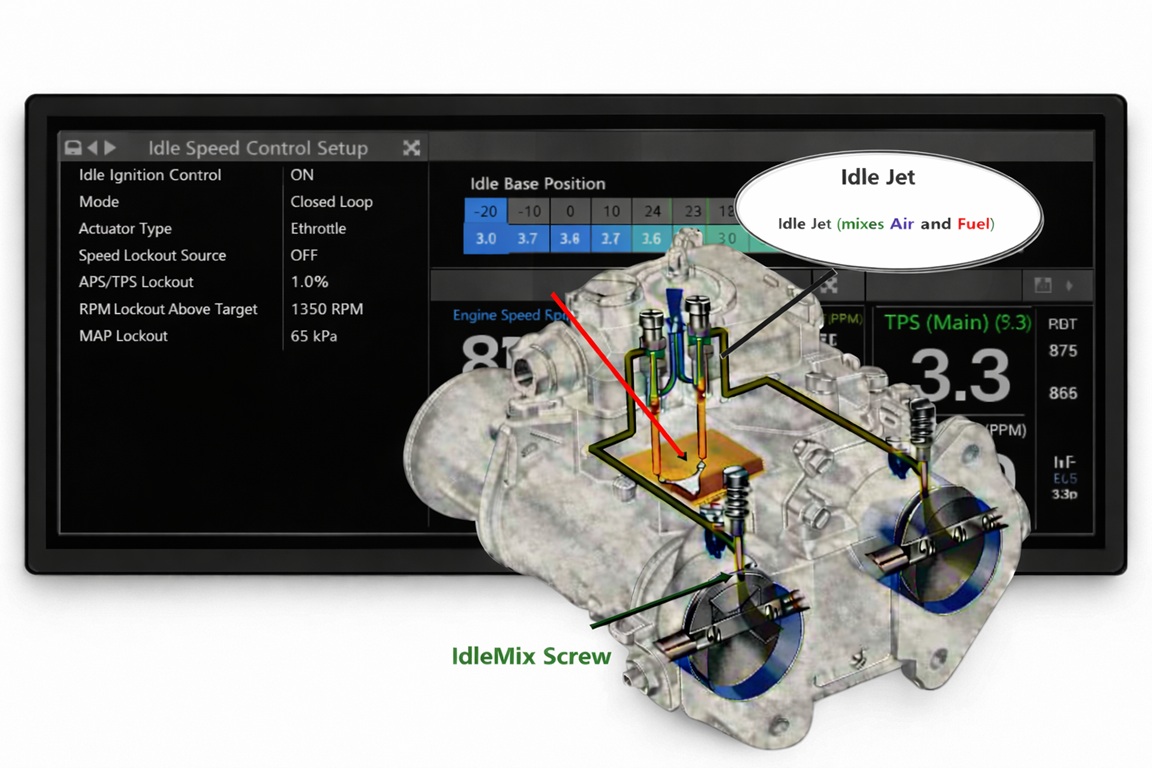

Idle Control

Carburettor

• Fixed idle screw
• Mixture adjusted manually
• Sensitive to electrical or mechanical load changes

ECU

• Target idle speed tables
• Idle air or throttle control
• Load, temperature, and voltage compensation
• Behaviour defined entirely by calibration

Transient Throttle (Tip-In / Lift-Off)

Carburettor

• Accelerator pump delivers a fixed fuel shot
• Tuned mechanically
• Cannot adapt to RPM or load changes

ECU

• Uses throttle rate-of-change
• Applies programmed transient fuel corrections
• Compensation varies by RPM, load, and temperature

The ECU does not “know” what the engine wants — it follows predefined transient fuel models.

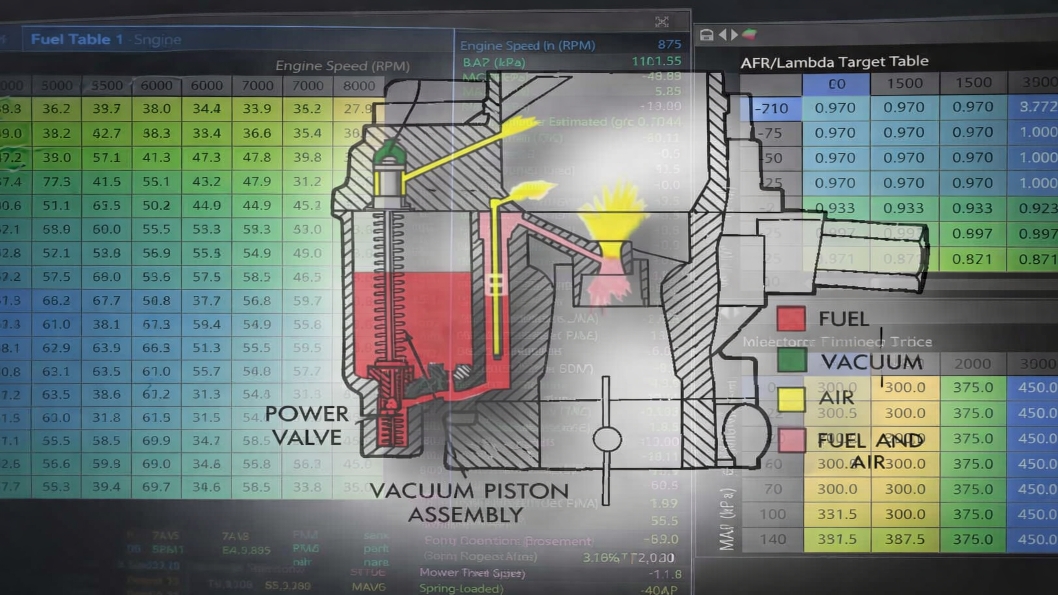

Power Enrichment

Carburettor

• Power valve opens based on vacuum
• On/off behaviour
• No RPM or temperature awareness

ECU

• Enrichment based on load, RPM, boost, and temperature
• Multiple enrichment tables can overlap
• Knock feedback may modify timing, not intent

Again, enrichment occurs because the calibration instructs it to, not because the ECU is self-optimising.



Cruise Operation

Carburettor + Vacuum Advance

• Fixed lean behaviour
• Limited adaptability
• Works well in steady conditions

ECU

• Closed-loop lambda control (if enabled)
• Cruise ignition maps
• Temperature and load modifiers
• Still bound by programmed limits

OEM ECUs tend to excel here due to extensive development and validation.

Ignition Control: Hardware vs Software

Traditional System

• RPM-based mechanical advance
• Load-based vacuum advance
• No feedback or correction

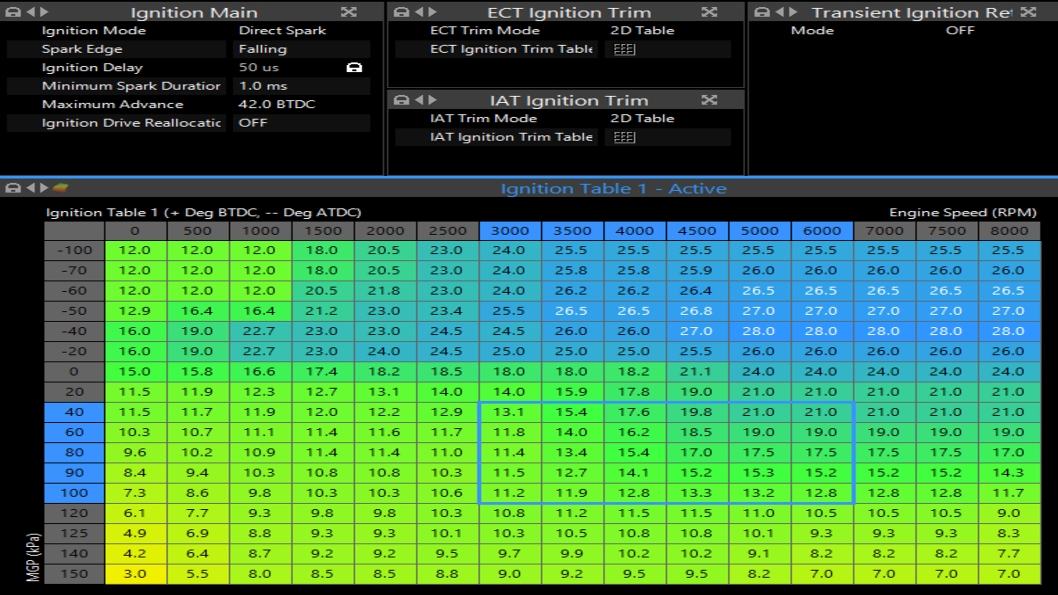

ECU

• Ignition tables indexed by RPM and load
• Temperature compensation
• Knock-based timing reduction (if enabled)
• Individual cylinder trims (platform-dependent)

The ECU does not chase “best timing” — it applies the timing values it has been instructed to use and modifies them only within programmed constraints.

Drivability Comparison

Scenario	Carb & Distributor	ECU
Cold start	Variable	Repeatable
Traffic idle	Load-sensitive	Controlled
Throttle transitions	Mechanically limited	Table-based
Altitude change	Manual re-tune	Sensor compensated
Fuel economy	Fixed	Calibrated
Consistency	Environment dependent	Sensor dependent



Why Carburettors Still Have a Place

Carburettors are not “bad” — they are mechanical control systems solving complex problems with no electronics.

They are well suited to:

• Period-correct builds
• Fixed operating conditions
• Simplicity-focused projects
• Mechanical transparency

However, they cannot:

• Adapt dynamically
• Correct for sensor-measured conditions
• Be reconfigured without physical changes

Final Takeaway

Carburettors and mechanical ignition systems rely on physics and hardware to approximate engine requirements across a wide operating range.

Modern engine management relies on:

• Sensors to measure conditions
• Tables to define behaviour
• Logic to apply corrections

An ECU does not “know” what an engine wants — it executes the strategy it has been programmed with, using available inputs.

When well calibrated, this provides:

• Greater consistency
• Better drivability
• Improved emissions control
• More flexibility for modern engines

Same internal combustion engine — very different control methodology.
